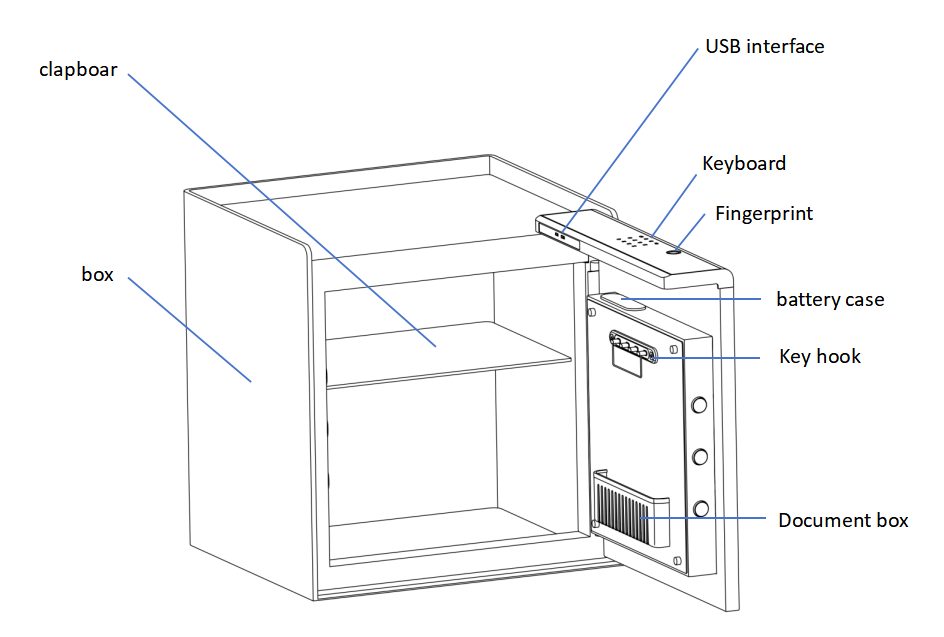

HS series intelligent bedside table safe (hereinafter referred to as safe) is mainly used in family study, luxury club, enterprise manager room and finance room, at the same time its height of 500mm, 480mm, 480 mm and 460mm three sizes for choice, very suitable for placement on both sides of the bed of the family bedroom, to replace the traditional bedside table. The top of the safe (Diagram 1) is enclosed by a 25mm high fence, which will not slip from the edge; the top of the box is treated, its soft touch makes mobile phones, watches, glasses and other valuables not easily damaged when placed on the cabinet; the front door panel is all steel material, the leather color can be matched with different styles of furniture, fashionable and safe.

HS series intelligent bedside table safe adopts semiconductor fingerprint identification technology, with biological key as the common way to open the safe, to achieve the uniqueness and high security of biometric identification technology, convenient to use and give people a sense of science and technology.

HS series intelligent bedside table safe contains built-in partition, partition can be removed; built-in intelligent lighting, open the door after the lighting will automatically light up to take things, close the door will automatically turn off to save power supply.

After unlocking once in any way, press the initialization button within 15 seconds, voice prompt “Please enter your fingerprint or password”;the keyboard light is on, and the fingerprint light is on the blue breathing mode. If you need to add a fingerprint, press the voice prompt to input; if you need to add a password, enter the 6-bit password and press the key. At this time, the voice broadcast “Please enter again”;repeat the password, and the voice broadcast ”Add successfully“.

Note: the factory password is 123456, and the same password cannot be added repeatedly.

When the battery is insufficient and cannot open the fingerprint door, you can use the Type-C charger commonly used by mobile phone (this product is not standard charger) to access the Type-C interface to supply power to the HS48S smart safe, and then enter the fingerprint door. Type-C USB plug can be inserted back and forth, do not use great effort when inserting, so as not to damage the socket.

Note: Type-C USB interface is an external power port for fingerprint circuit.

When using fingerprint to open the door, if the safe has a voice prompt “battery low, please replace”, the battery should be replaced in time after opening the door. Find the lock of the battery cover plate (Diagram 2), press and open the battery cover plate in the opposite direction, and remove 4 no. 5 batteries for replacement. It is not recommended to use the replacement method of taking an old battery for a new battery, which is not conducive to the long use of the circuit.

According to the positive and negative electrode direction of the battery marked by the battery cover plate, correctly install 4 new no. 5 alkaline battery, and the battery is successfully replaced after the cover plate is covered.

Tip: It is recommended to replace the battery once a year.

First of all, in the safe open the door state, hold the initial button and keep 5 seconds (every 1 second sound prompt), 5 seconds after voice prompt for gradient sound, release button, fingerprint acquisition window blue breathing light flashing, keyboard area, at the same time voice prompt  ”reset complete”, indicates the initialization success.

Note: After initialization, any fingerprint will open the door, and the voice volume will return to the normal volume. But the speech language is no longer cut back to Chinese. After the local initialization settings, the previously bound device cannot connect again. Please bind it again in the first step above.

During the unlocking process, the fingerprint input error for five times, the voice prompt "multiple password error system is locked" the system automatically locked, and the system lock ended after 5 minutes.

When no fingerprint is detected in the fingerprint detection window, the system quickly enters the state of micro-power consumption, which can save power consumption and prolong the service life of the battery.

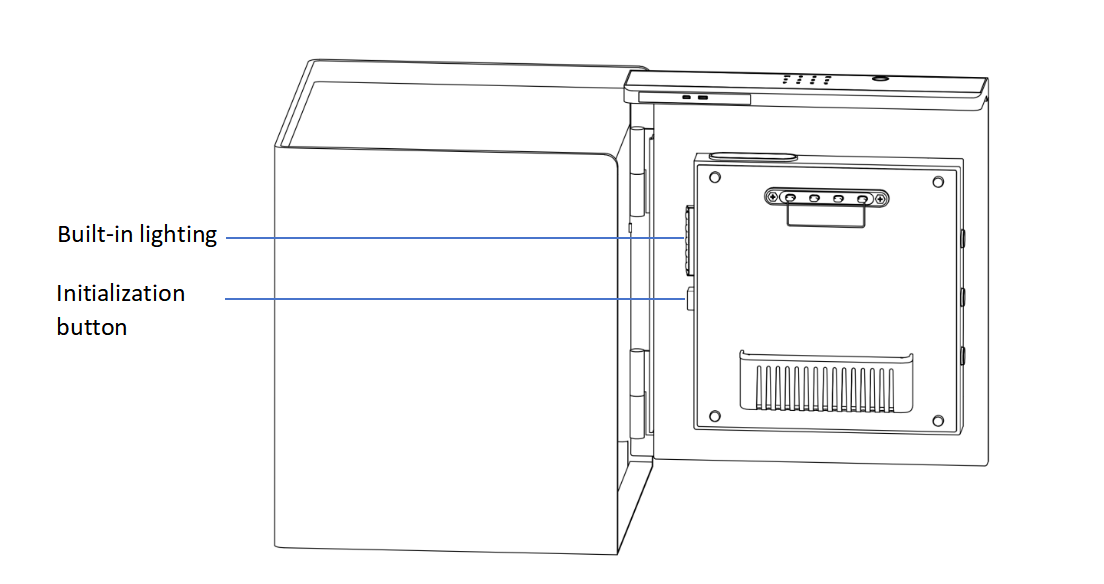

Open the door of the safe box, the built-in lamp (Diagram 2) will light up automatically, turn the panel off for 15 seconds, only need to wake up the keyboard; after closing the built-in lamp will go off automatically to reduce power consumption.

In the factory mode, press * * 65465411 #, and hear the voice "successful operation", indicating the switch to "flat finger mode", which is suitable for users with fuzzy fingerprints. Enter * * 65465433 #, and hear the voice "successful operation", indicating that the "flat finger mode" is cancelled.

Enter * * 6665554 #, sound volume on / off.

Enter * * 6665556 # to switch the Chinese / English prompt language.

Enter * * 6695551 #, and verify the administrator to open the dual verification mode. Opening the door requires one fingerprint and one password to pass.
